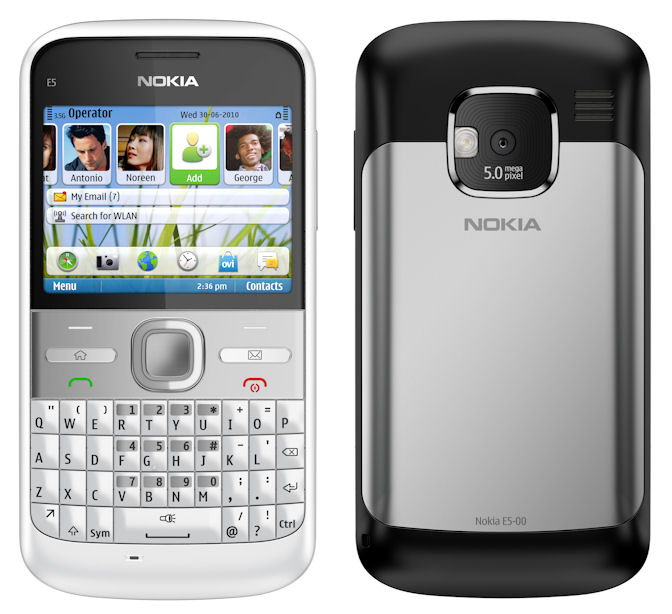

Nokia E5 was just announced and we just learnt that it’s a successor to the Nokia E63Nokia E63. It’s a Business phone powered by Symbian S60 3rd Edition FP2. the phone packs a 320x240 display and measures 115 mm x 58.9 mm x 12.8 mm. It weighs 126 gms and has a nice metallic finish on the rear.The mail highlights of the E5 is the Email and Instant messaging with 1 click access to SMS, EMail and IM. The QWERTY keypad is similar to the E63 and there is a dedicated keys for Home and Messaging.

Packing the latest version of S60 3rd edition, the Nokia E5 boasts a suite of homescreen features including one-touch access to your favourite contacts, and your favourite social networks. It also boasts Facebook updates direct to your contacts list, so you can always see what your friends are up to and, as it packs the latest version of Nokia Messaging, you get full Instant Messaging functionality too.

Ovi Maps with free walk and drive navigation is on board, as is Ovi Store and with Nokia Messaging comes access to email on the go with support for multiple email accounts, including popular mail services such as Ovi Mail, Yahoo! Mail, Gmail, Windows Live Hotmail and for the business folk, Microsoft Exchange and IBM Lotus Notes Traveler.

The Nokia E5’s screen is a 2.4-inch affair which is perfect for showing off snaps taken with the 5-megapixel camera. Below the screen comes two hot keys and dedicated buttons for both the homescreen and messaging and call start/answer and end buttons, the latter doubling as the on off button – like the C3.

Like the Nokia E71 and E72 before it, the Nokia E5 is a tidy little number with similar dimensions, though the E5 is approximately 2mm chubbier than it’s predecessors. On the plus side, it weighs in a whole 2 grams lighter than the E72. Before you say boo, though, did we mention the no-need-t0-charge-me-I-still-have-plenty-left battery life? Storage is taken care of with 250MB of on-board memory and support for up to 16GB on microSD.

SPECIFICATIONS
General
2G Network GSM 850 / 900 / 1800 / 1900
3G Network HSDPA 900 / 1900 / 2100
HSDPA 850 / 900 / 2100
Announced 2010, April
Status Coming soon. Exp. release 2010, Q3

Size
Dimensions 115 x 58.9 x 12.8 mm, 75 cc
Weight 126 g
Display
Type TFT, 256K colors
Size 320 x 240 pixels, 2.4 inches
- Full QWERTY keyboard
Sound Alert types Vibration, MP3 ringtones
Speakerphone Yes
- 3.5 mm audio jack

Memory
Phonebook Practically unlimited entries and fields, Photocall
Call records Detailed, max 30 days
Internal 250 MB
Card slot microSD, up to 32GB, 2GB included

Data
GPRS Class 32
EDGE Class 32
3G HSDPA 10.2 Mbps; HSUPA 2.0 Mbps
WLAN Wi-Fi 802.11 b/g, UPnP & DLNA technology
Bluetooth Yes, v2.0 with A2DP
Infrared port No
USB Yes, v2.0 microUSB

Camera
Primary 5 MP, 2592 x 1944 pixels, fixed-focus, LED flash
Video Yes, VGA@15fps
Secondary No

Features
OS Symbian OS v9.3, Series 60 rel. 3.2
CPU ARM 11 600 MHz processor
Messaging SMS, MMS, Email, Push Email, IM
Browser WAP 2.0/xHTML, HTML
Radio Stereo FM radio with RDS
Games Downloadable
Colors Carbon Black, Chalk White, Sky Blue, Copper Brown, Silver Grey
GPS Yes, with A-GPS support; Ovi Maps
Java Yes, MIDP 2.0
- MP4/H.264/H.263/WMV player
- MP3/WAV/WMA/eAAC+ player
- Flash Lite v3.0
- Voice command/dial
- Organizer
- T9

Battery
Standard battery, Li-Ion 1200 mAh (BL-4D)
Stand-by Up to 600 h (2G) / Up to 552 h (3G)
Talk time Up to 7 h 30 min (2G) / Up to 4 h 40 min (3G)
Music play Up to 38 h
